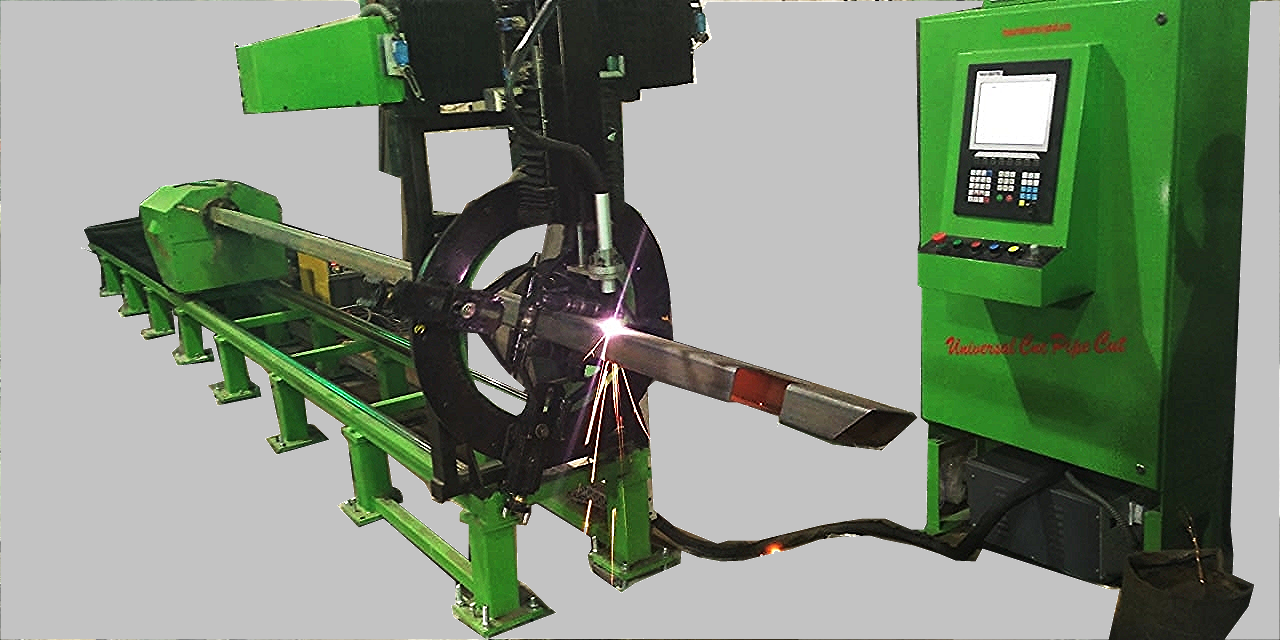

Description of Sub Module
Track & Carriage ( Y Axis )
This is a fabricated structure made out of square pipe.
Carriage movement through :- 1000 watts Panasonic Gear Servo Motor 1 Nos.
“ZD” Make Planetary Gear Box Drives : AC Digital Panasonic .
Horizontal axis ( X Axis )
Consist of Left - Right slide , Movement through ball screw , 750 watts Panasonic gear motor.
“ZD” Make Planetary Gear Box Drives : AC Digital Panasonic .
Rotary axis
Consist of heavy duty chuck type attachment. Consist of 4 nos slide for pipe fitting
Rotation through, 750 watts PanasonicGear motor 1 Nos.
“ZD” Make Planetary Gear Box , Drives : AC Digital Panasonic
Rotation capacity1 ton suitable for 300 mm dia pipe.
Idler pipe rotator 6 mtr. Length.
Z, Axis
Consist of UP-DN slide , Movement through ball screw ,750 watts Panasonic gear motor.
“ZD” Make Planetary Gear Box , Drives : AC Digital Panasonic .
Controller 4 Axis Fangaling .
- Function key with display on screen.
USB Interface
80 Standard shapes from part library
Standard nesting ability.
Input / Output command display
Programmable kerf
Indication of the size of the sheet plate
Sheet plate reference point left/right/ top/ bottom
Automatic sheet plate alignment. Nesting can align to plate
Graphic indication of torch position. Machine works on real time motion.
Zoom function.
Repositioning to the last programmed point
Forward and Reversing within the contour
Forward backward movement of machine torch with in nest by direct entry module.
Forward and backup along path with lead in and lead out Facility. Complete Built in diagnostic for checkout and test
Indication of axes position.
Kerf Compensation between pierce points.
Edit/MDI/Text programmed function
Programmed rotation (steeples)
TECHNICAL PARAMETER
Rapid Positioning Speed : 0-9999 mm/Min
Longitudinal Guiding Accuracy +/- 0.3 mm / 3 Meter
Repeatability Accuracy +/- 0.5 mm
PLASMA CUTTING STATION
One plasma cutting station with lifter & torch height sensor.
NESTING SOFTWARE
“TUBE MASTER” for rectangle pipe( 4 axis )
