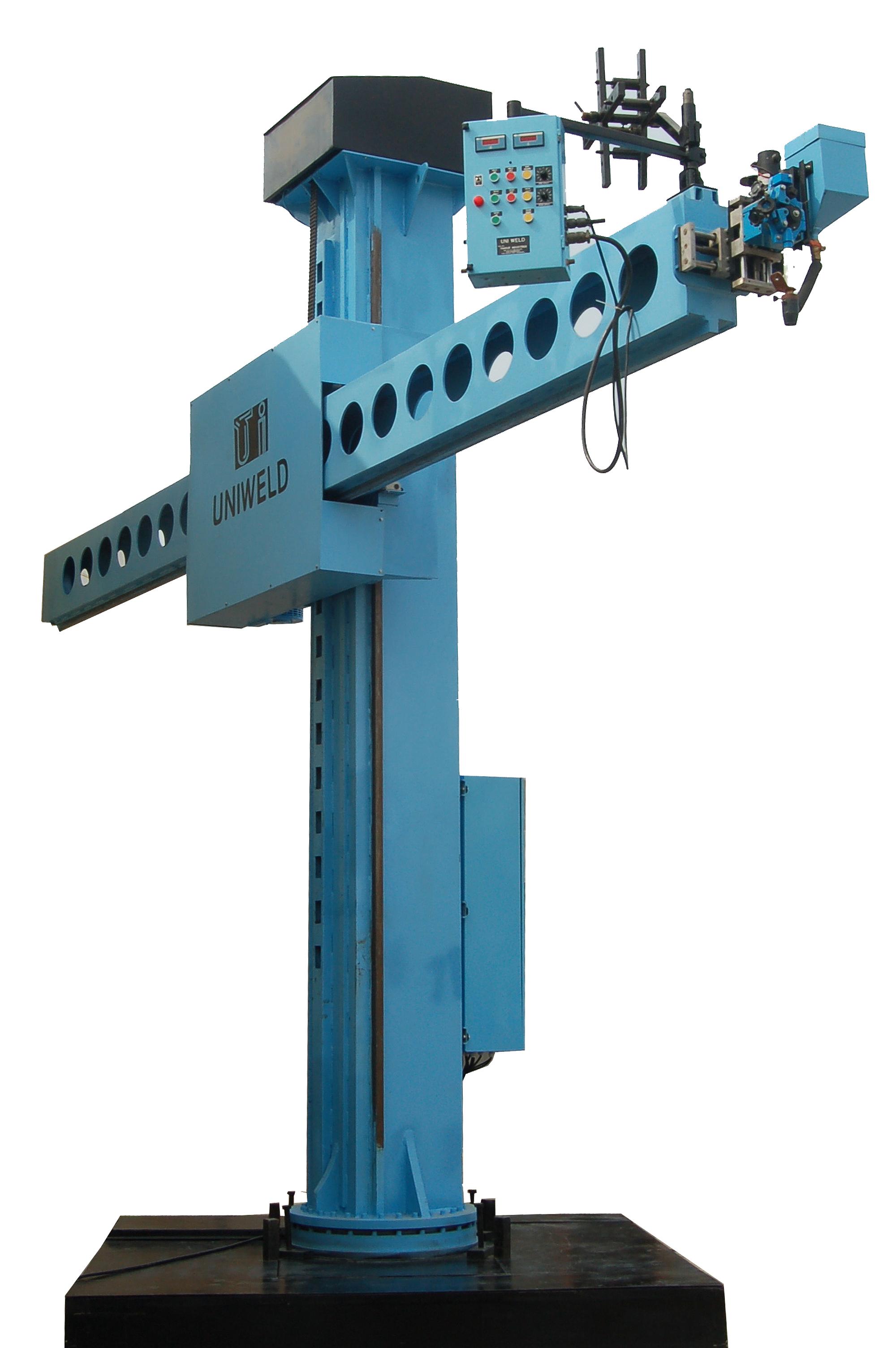

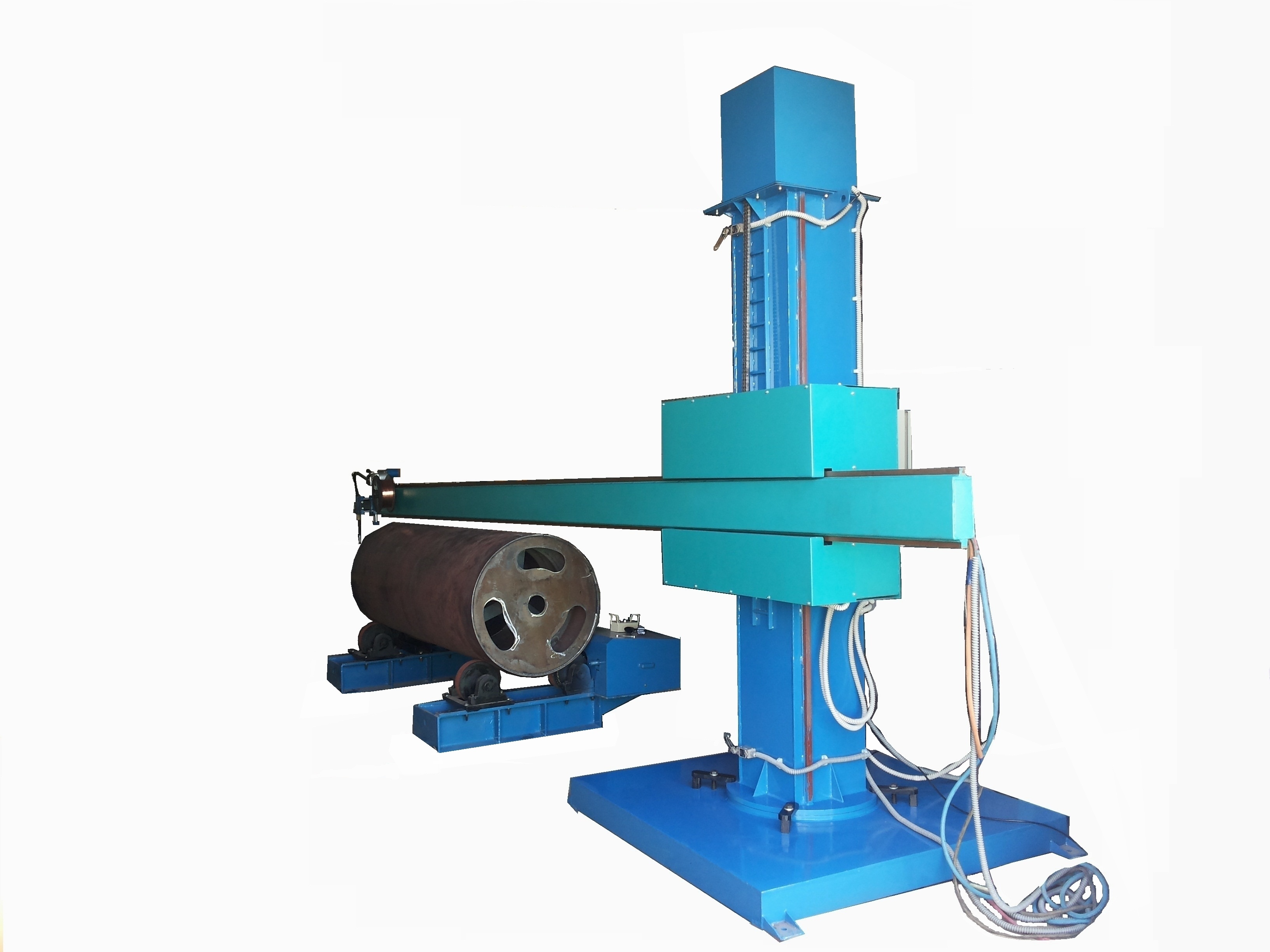

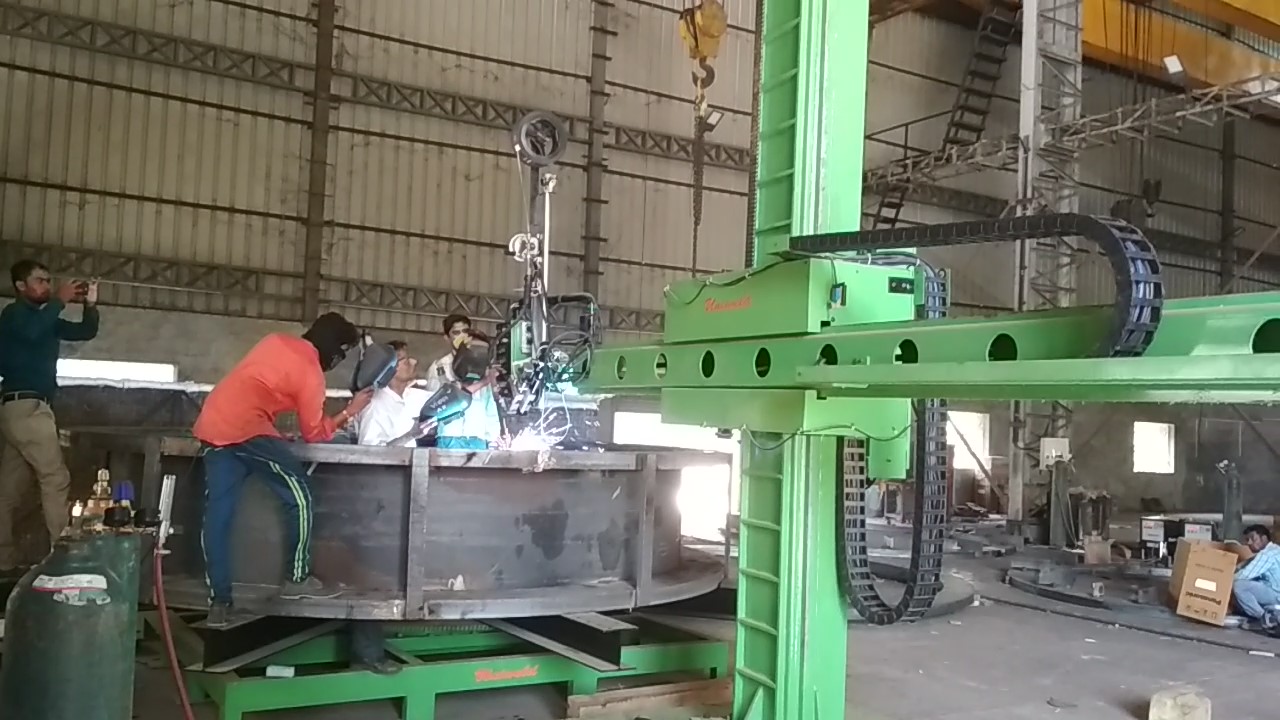

Column :- Made from Square Tube , mm Vertical clear stroke: 5000 mm
Boom :- Made out of rectangle Tube . Horizontal clear stroke: 4000 mm
Boom carries : One MIG welding head & One SAW welding Head at another end Consist of X & Y motorized slides 300 mm stroke maximum , Up, Dn working through . PMDC gear motor 24 V. DC. ( at both end )
Maximum Total height of machine from the ground level: 5000 mm (Approx.)
Horizontal travel speed of the boom (AC VFD): 125 to 1250 mm/min
Vertical travel speed of the boom (AC Fixed Speed): 1000 mm/min
Swiveling range for the column & boom360 Degree.
For Safety precaution: Anti-Drop Device (Locking)
Capacity of horizontal drive motor for boom (AC Motor): 0.5 HP/1440 RPM any ISI make, all gearbox bonvario
Capacity of vertical drive motor for boom (AC Motor): 1 HP/1440 RPM
Mechanism for Boom Vertical Movement: Counter Weight with Chain & chain Sprocket.
Mechanism for Boom Horizontal Movement: Rack & Pinion
Cable Drag Chain for Boom Up/Down Movement Provided
Control Panel: A.C. Drive for Boom horizontal movement, contactor & overload realay for Boom vertical movement, fixed speed boom vertical movement. All motors are protected with Limit switch, wiring with multi-core cable protected with PVC hose Pipe and properly clamp along with the machine.
Controls on the Control Panel: Boom FOR, Boom REV, Boom STOP, Boom UP, Boom DOWN etc. Panel Remote Switch, Boom Speed Pot etc.
Operator console: Controls on Operator console Boom FOR, Boom REV, Boom STOP, Boom UP, Boom DOWN, etc, Boom Speed Pot, speed indicating meter, etc.
Multi core cable provided in between Panel and Operator console with PVC hose protection. Panel mounting arrangement on the face of the column.
|
Foundation of column & boom On base plate & channel frame. ( fixed Type Column & B00m ) |
