HEAD STOCK
POWERD BY GEAR MOTOR . WITH VARIABLE SPEED DRIVE
BASE PLATE OR THROUGH CHUCK PROVIDED FOR JOB FITTING ACCORDING TO CUSTOMERS REQUIREMENT
CARRIAGE FOR LONG SEAM
FITTED WITH FOUR NOS M.S. ROLLERS WITH THE HELP OF LINEAR ROD ON FABRICATED & MACHINIZED BOOM. MOVEMENT OF CARRIAGE WITH A.C. GEAR MOTOR ( VARIABLE SPEED CONTROLL THROUGH A.C. DRIVE )
WELDING HEAD
FITTED ON ABOVE CARRIAGE.
CONSIST OF WEAVING ATTACHMENT
X & Y MOTORISED SLIDES
WIRE FEEDER MOTOR (SAPERATE FROM POWERSOURCE )
NECESSORY TORCH FITTINGS
TORCH
CONTROL PENAL
CONSIST OF 2 NOS A.C. DRIVE FOR HEAD STOCK & CARRAIGE MOTOR & NECESSERY CONTACTORS & SPEARS, D.C. DRIVE FOR WIRE FEEDR , D.C. DRIVE FOR WEAVING UNIT , CONTROL TRANS FORMER , DRIVE FOR X & Y MOTORISED SLIDS, ETC.
CONTROL PEDENT
CONSIST OF PUSH BUTTON FOR WELDING ON- OFF , CARRIAGE ON – OFF , CARRIAGE REV – FOR
HEADSTOCK REV- FOR, WIRE INCHING JOY STICK SWITCH FOR X & Y MOTORISED SLIDES.ETC
OPTIONAL ACCESSORIES
MIG ,TIG , SAW WELDING POWERSOURCE
TIG WELDING HEAD WITH COLD WIREFEEDER
SAW WIRE FEEDER , PNUMATIC MOVEMENT OF TORCH
JOB LOADING – UN LOADING ARRANGEMENT.
APPLICATION

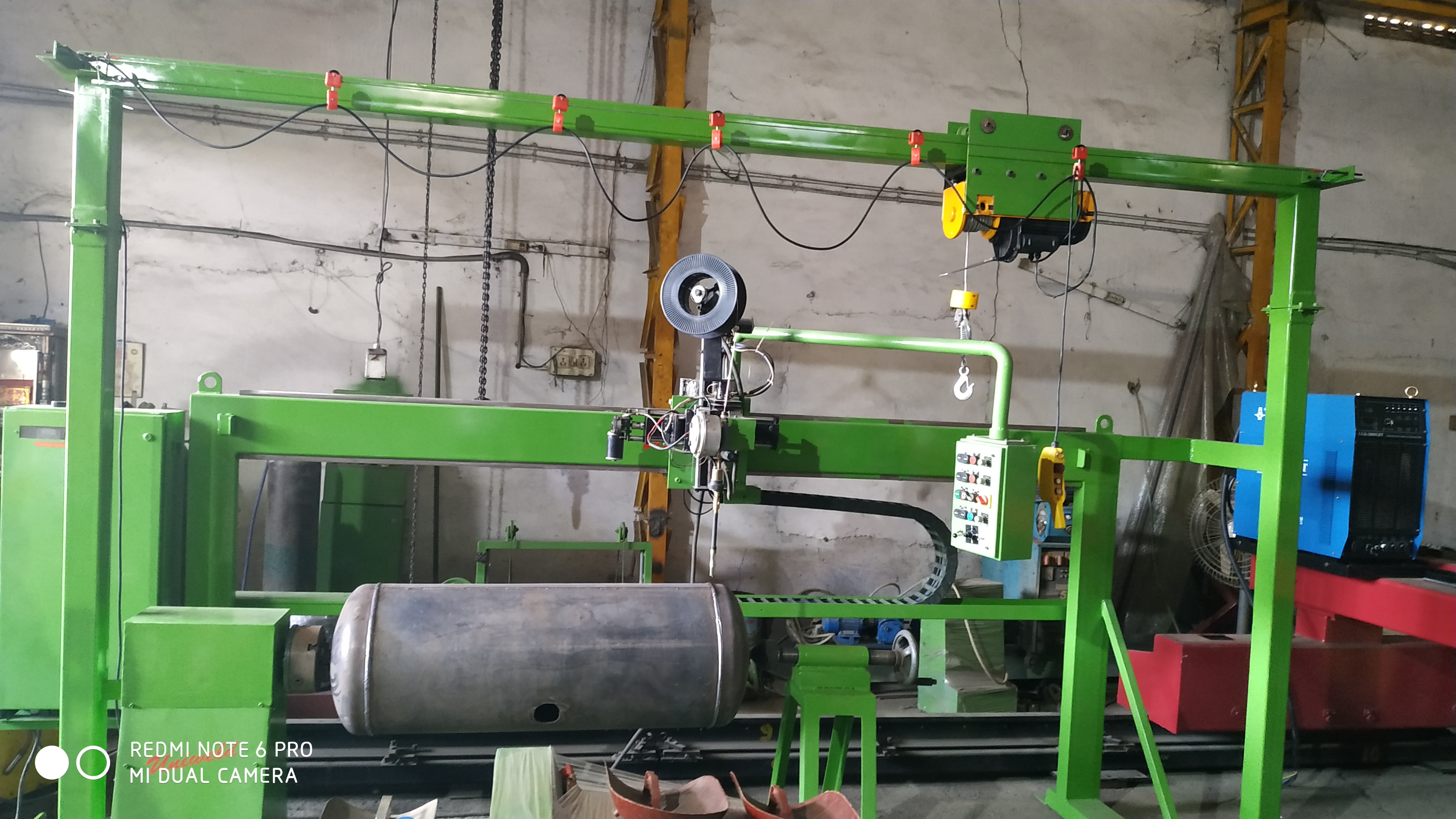

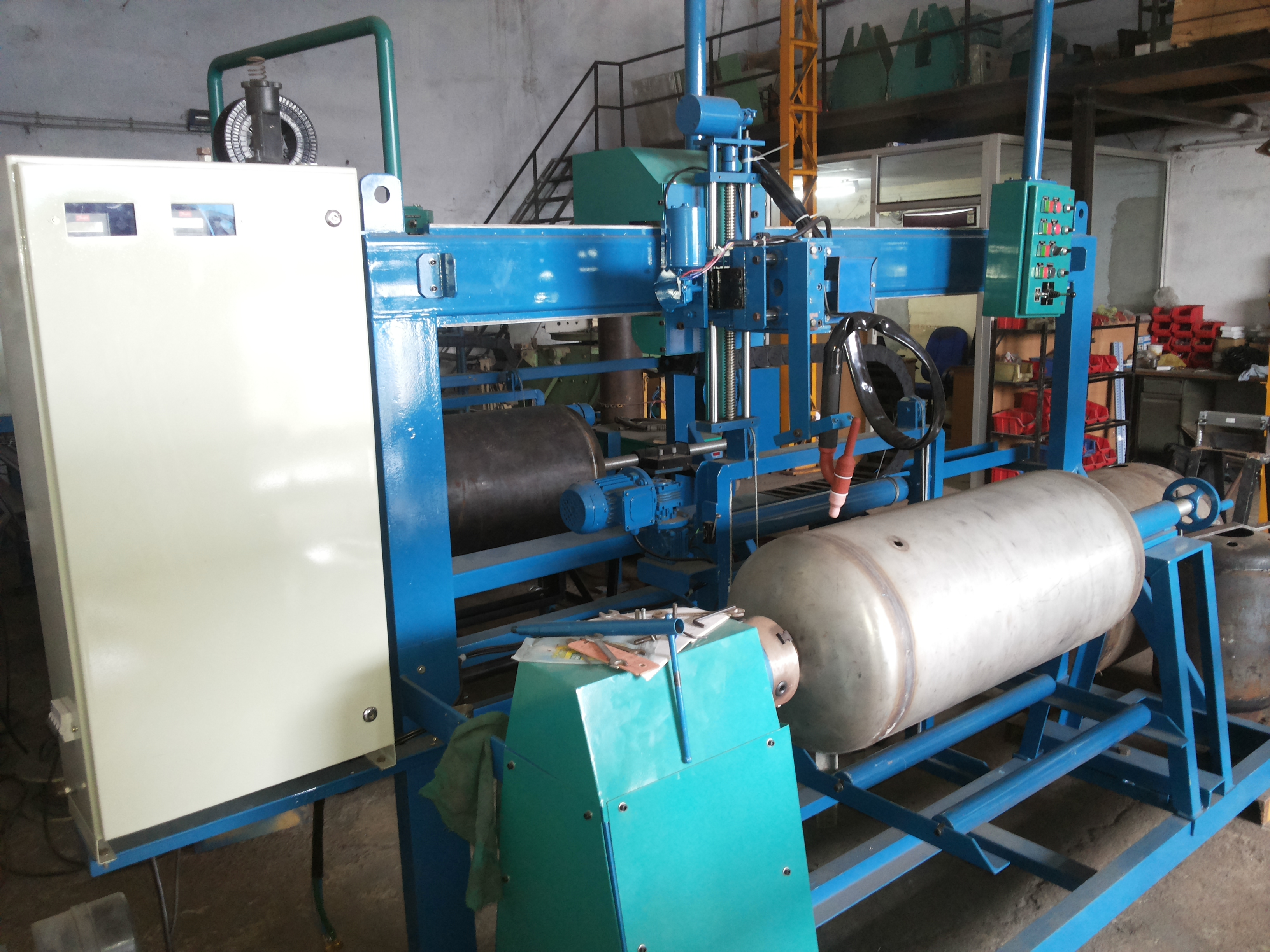

APPICABLE FOR SEAM & CIRCUMFERANCIAL WELDING OF S.S. M.S. TANK, SPEARS FOR SCAFOLDING,
SOLAR HEATER TANK ETC. PL. CONTACT FOR CUSTOMISED APPLICATIONS.
